Boxxer 35mm 2010-2018 and 2019-2023 Cartridge and Adaptor Kit
Ultimate Select+ Select Race RC Team RC2C R2C2 WorldCup/Keronite
fits both 26 and 27.5+/29er and 200 and 180 mm travel versions.
Technology
|
 |
 |
 |
 |
The best performance modification you will ever do to your fork!
Complete replacement of the damper with our open bath cartridge!
This will make your fork feel like a completely different fork, because it is!
Low speed damping that’s firm but still blows-off to be plush on small
bumps,
Reduced fork dive that eases the fork through the travel without harshness,
No more high speed compression spikes and no more bottoming with the ABS system.
Low speed compression and rebound adjusters help fine tune the valving as
to how it transitions from low to mid and when the high speed kicks in,
Much more effective than the other dampers attempt to add high speed adjustment
without the proper shim stack.

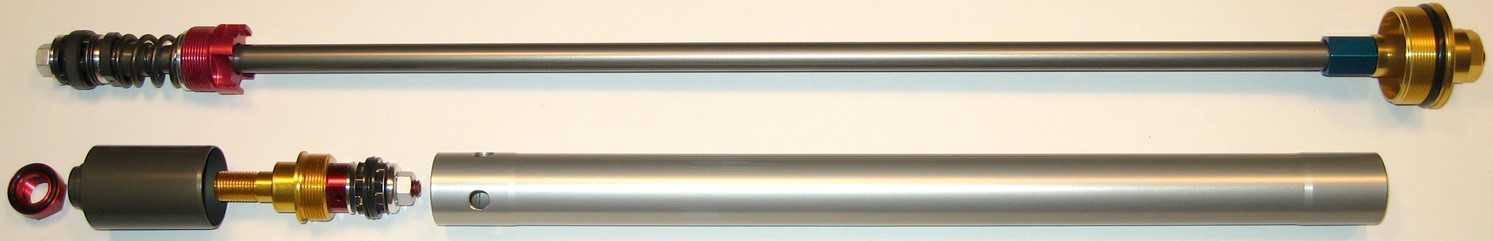

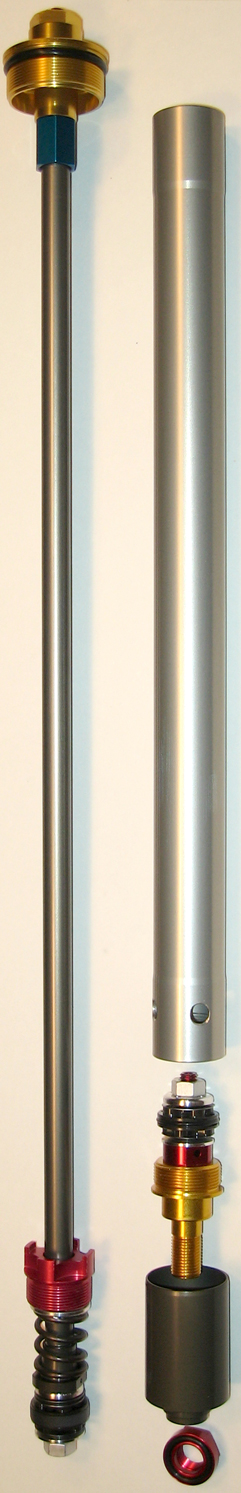

20 mm Cartridge Damper Kit with fork rebound adjuster cap, ABS cone/lower
casting adaptor, oil lock adaptor ring, adaptor arbor sealing nut
and oil lock snapring.
Self install kit includes custom valving, and midValves.
Thinking of upgrading your old Boxxer to the new Charger
Damper?
Just order our open bath cartridge for your old Boxxer and be done with it.
Specifications
• Replacement open bath maintenance free speed sensitive
damper assembly, "set it and forget it"
• 20 mm ID damper tube with shimmed 4 port MX style compression and rebound
valving pistons
• Upper fork cap adjuster screw with 22 clicks of activated low speed
rebound
• Base valve adjuster screw with 22 clicks of activated
low speed compression adjustment
• Hydraulic Anti-Bottoming
System (ABS) for end of stroke bottoming resistance
• Speed sensitive multi-stage shimmed compression,
midvalves and rebound valving
• Custom valved and set-up for each rider with printed set-up
charts
• Fork spring and air pressure recomendations help us tune to to your
weight riding style
• Midvalve
kit included with standard cartridge to prevent fork dive, adds low speed
compression without
harshness, optional midvalve revalving shim kit and set-up
charts available
• Designed to be self-installed
or send it to us for installation if you need us to do the install
• Weight approx. 300 grams
Need us to install it for you, just send your fork to us and we will install it for $100 including Spectro 85/150 oil.
Includes New Interactive Set-Up Chart
Example
Optional FvAT/HSB
Floating Valving Assisted Threshold High Speed Blow-off System
click here to add it
to your cartridge
For the firmer feel without harshness, have that big hit set-up that still feels plush on square edged bumps!
Also
Available for those who want to fiddle with their set-up:
• Optional
revalving kit for compression and rebound pistons, with revalving set-up
charts
 |
Boxxer 35mm |
Download: Boxxer 35 mm 2010-2018
Boxxer 2019-2021 install manual call for instructions(similar to
late models Lyric.Yari,Zeb) Watch the Install Video(unedited sorry)
To order tools, revalving kits, and replacement adaptors click here:
Available for all models of Note that 2019 and newer cartridges are different and will not fit older models Custom valved and set-up to rider weight, ability and riding style Need to have us install it for you? Ship your fork to us and we can install it for $129 plus shipping, includes Spectro 85/150 oil. Reviews and Comments:
|
 |
Coil
Conversion Kit / Options for air forks
Hybrid Coil and Air System
Open bath cartridge systyem above, stock charger damper below
Click here: to add Hybrid coil option
Have us install your cartridge for you Ship us your fork, we
will install your new cartridge Add option here, does not include shipping back to you, we will adjust your shipping total depending on where you live in the world and send you a Paypal invoice for the difference. This is not a rebuild, it assumes your fork is in good working condition with no leaks or scratches on the stanchions. Price $129
|
:
